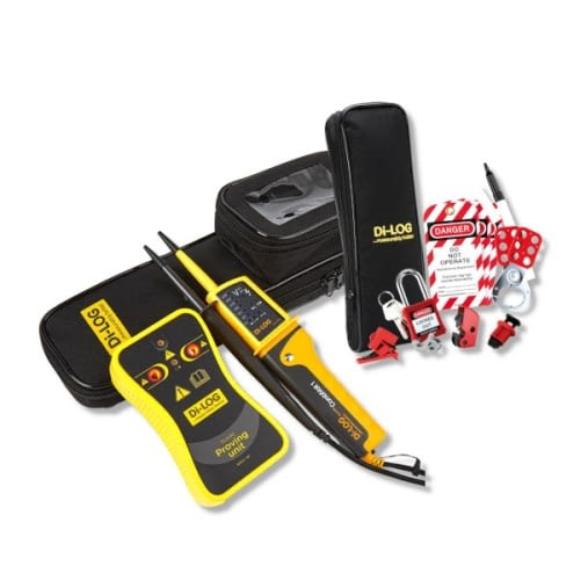

Di-Log DLPK6780-LOC3 CombiVolt 1 Voltage Indicator Proving Unit Kit

Di-Log
Price:
£134.11 ex VAT

Currently, 1 in stock!

FREE 30 DAY RETURNS

Di-Log DLPK6780-LOC3 CombiVolt 1 Voltage Indicator Proving Unit Kit c/w Professional Lockout Kit

Di-Log DLPK6780-LOC3

The NEW Di-LOG DLPK6780 CombiVolt 1 Voltage Indicator and Proving Unit kit is supplied packaged in our bespoke carry pouch fitted with a durable carrying strap and belt loop.

The DLPK6780 kits compact, lightweight and ergonomic design will encourage the user to carry it on their person ready to conduct the correct safe isolation procedure as outlined and in accordance with the “Electricity at Works Regulations 1989”.

With our award winning CombiVolt series of voltage indicators being fully compliant to GS38 and BS 61243-3:2014, the Di-LOG DLPK67xx series kits offer fantastic safety, quality and value.

Contents:

  • 1 x DL6780 CombiVolt 1 Voltage Indicator
  • 1 x PU690 690V Proving Unit
  • 1 x CCDLPK Carry Pouch
  • 1 x DLLOC3 18th Edition Professional Lockout Kit



Di-Log DL6780

The Di-log DL6780 CombiVolt 1 Voltage & Continuity Tester with Phase Rotation test is the bench mark for voltage indicators. The three-in-one tester with a rugged, ergonomically formed housing for perfect handling is fully conformant to BS EN 64213-3:2014.

The DL6780 also offers Single Phase Detection.

  • Testing of AC/ DC voltages from 12 to 690 V AC/DC
  • Meets safety and performance requirements of BS EN 61243-3 2014
  • CAT IV 600V Safety Rating
  • Continuity testing with optical and acoustic indication
  • Automatic switching between voltage and continuity
  • Phase rotation test system
  • Single pole phase indication
  • Fully compliant with GS38
  • Fully operational voltage indication even when batteries are discharged
  • Will not trip any RCD when testing across Live and Earth
  • Single pole detection when L2 probe connected above 100V

Di-Log PU690

    The PU690 enables you to prove your 2 pole voltage indicator by supplying a 690V AC voltage to the two input terminals.  With the inbuilt load of 200k ohms, at 690V the current is limited to 3.5mA.  In addition, the PU690 is also is also suitable to prove High and Low Impedance devices such as multimeters and clamps.

    PU690 Key Features:

    • 690V AC Output
    • High/Low Impedance
    • Low Battery Indication
    • CAT II 750V Safety Rated

    Di-Log DLLOC3 18th Edition Professional Lockout Kit



    The DLLOC3 18th Edition Professional Lockout kit is designed to give you the ability to safely Lockout any circuit within an existing or new domestic or light to medium commercial premises.

    The kit gives you a lot more scope on comparison the the Domestic Kit, no matter how old the installation. The kit comes supplied with an array of lockout devices and several tags for multiple circuit isolation, all neatly packaged in one of our carry pouches.

    With the latest amendment to the 18th Edition Guidance Note 2, lock off devices and “Safe Isolation” procedures are being enforced across the UK by all monitoring bodies.



    Kit Includes:

    • DL8101 – Steel 38mm Safety Padlock
    • DL8103 – Steel Lockout Hasp 1″
    • DL8105 – Universal MCB Lockout Device (Aluminium)
    • DL8106 – MCB Pins-Out (Standard) Lockout Device
    • DL8107 – MCB Thumbscrew Type Lockout Device
    • DL8108 – Circuit Breaker ‘No-hole’ Lockout Device
    • DL8130 – Lockout Tag x 3
    • DL8131 – Wipeable Marking Pen to identify your tags
    • CP1190 – Lockout Carry Pouch







    AC/DC Voltage Measurement

    12 -690V

    Battery Type 2 x 1.5V (RO3) AAA (supplied)
    Colour Yellow/Black
    Display Type LED
    Product Range Voltage Indicator / Lockout Kit
    Indication LED
