FuseBox Main Switch RCBO Consumer Unit
FuseBox Main Switch Consumer Unit Range
The Fusebox F2 range of consumer unit and protection devices offers flexible versatile solutions for 18th Edition electrical installations.

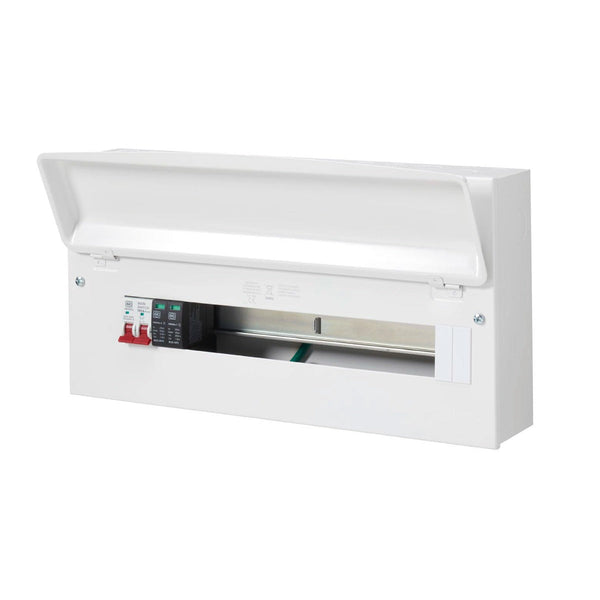

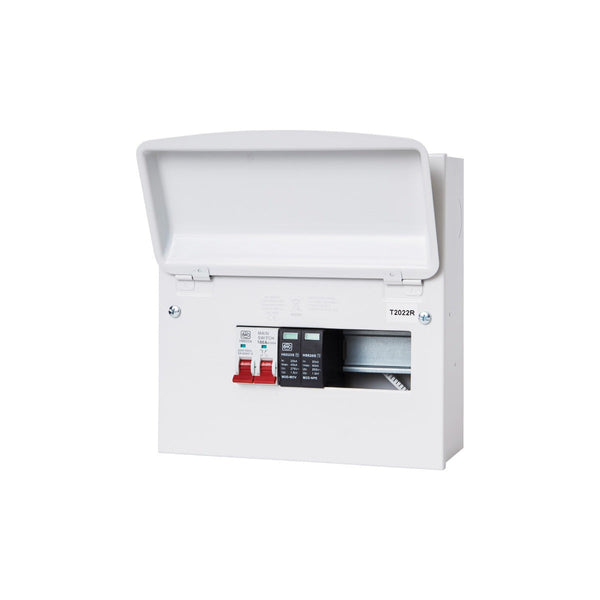

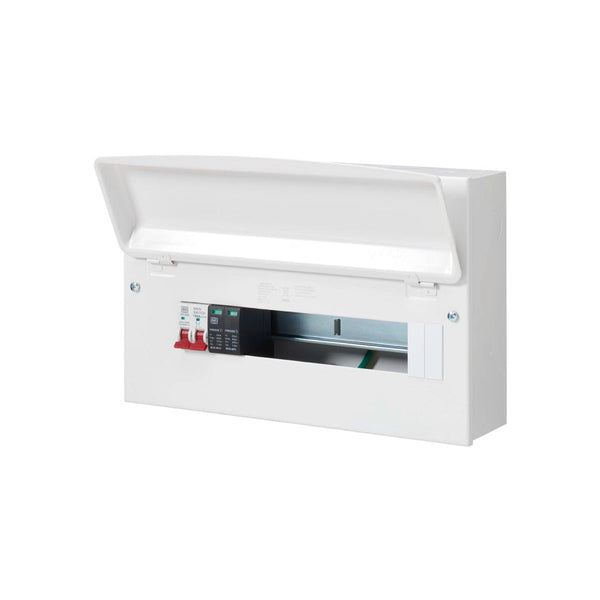

FuseBox metal consumer units with a 100A rated main switch incoming device. Additional MCBs (Miniature Circuit Breakers) or RCBOs (Residual Current Circuit Breaker with Overload Protection) can be added separately.
Available in 5 frame sizes ranging from 4 useable ways to 21 useable ways, Fusebox consumer units offer a comprehensive level of circuit protection at an affordable price.
These metal consumer units from Fusebox are constructed from steel and are 18th Edition compliant.
Key Features
- Available in 5 frame sizes:
- 4 useable ways with 6 modules
- 7 useable ways with 9 modules
- 11 useable ways with 13 modules
- 15 useable ways with 17 modules
- 21 useable ways with 23 modules - Supplied with a 100A rated mains switch (known as an MS for short) which takes up 2 modules
- Busbar and din rail supplied
- 18th Edition 'Overload Protection' compliant
- Amendment 3 non-combustible, robust metal enclosure
- The 4 way version isn't compatible with the ACCF tail clamp
- Finish: White
- IP rating: 2XC
- Enclosure: Steel
- Voltage: 230V / 50Hz
- Manufacturer: FuseBox
F2004M 4 Useable Ways | 6 Modules
- Width: 162mm (A)
- Height: 255mm
- Depth: 110mm
F2007M 7 Useable Ways | 10 Modules
- Width: 234mm
- Height: 255mm
- Depth: 110mm
F2011M 11 Ways | 14 Modules
- Width: 306mm
- Height: 255mm
- Depth: 110mm
F2015M 15 Useable Ways | 18 Modules
- Width: 378mm
- Height: 255mm
- Depth: 110mm
F2021M 21 Useable Ways | 24 Modules
- Width: 486mm
- Height: 259mm
- Depth: 116mm
